An SVG overlay for a drawing canvas that traces a fitted clean shape over a rough hand-drawn stroke while the pen holds still, then morphs the stroke into it and lets the user turn/resize the result.
"use client";
import * as React from "react";
import { PerfectPreview } from "@/components/ui/perfect-preview";
import { inkColor } from "@unlocalhosted/metalui";

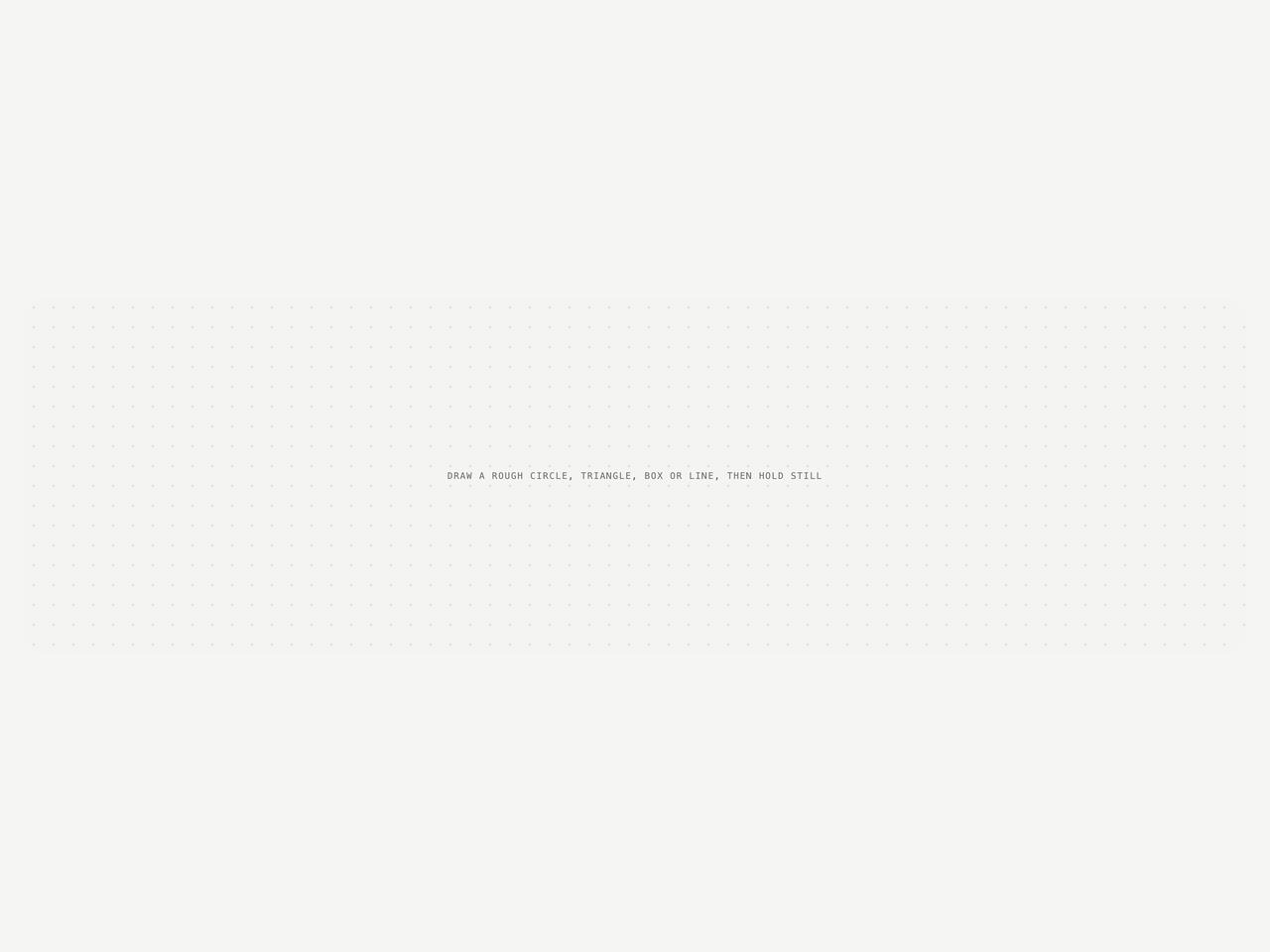

/* Draw a rough circle or line and keep the pointer still: the clean shape traces itself, then the
* stroke morphs into it. Move again before it closes to keep your own stroke. The fit here is a
* stand-in for the core's shape_recognize: rectangle, ellipse, triangle, line or nothing. */
type P = [number, number];
const N = 96;
function resample(pts: P[], n = N): P[] {
const d = [0];
for (let i = 1; i < pts.length; i++)
d.push(
d[i - 1] +
Math.hypot(pts[i][0] - pts[i - 1][0], pts[i][1] - pts[i - 1][1]),
);
const L = d[d.length - 1] || 1,
out: P[] = [];
for (let k = 0, j = 0; k < n; k++) {
const t = (k / (n - 1)) * L;
while (j < d.length - 2 && d[j + 1] < t) j++;
const u = (t - d[j]) / (d[j + 1] - d[j] || 1);
out.push([
pts[j][0] + (pts[j + 1][0] - pts[j][0]) * u,
pts[j][1] + (pts[j + 1][1] - pts[j][1]) * u,
]);
}
return out;
}
/** Douglas-Peucker: an open stroke reduced to its corners. */
function corners(pts: P[], eps: number): P[] {
if (pts.length < 3) return pts;
const [a, b] = [pts[0], pts[pts.length - 1]];
let far = 0,
at = 0;
for (let i = 1; i < pts.length - 1; i++) {
const p = pts[i],
L = Math.hypot(b[0] - a[0], b[1] - a[1]);
const d = L
? Math.abs(
(b[0] - a[0]) * (a[1] - p[1]) - (a[0] - p[0]) * (b[1] - a[1]),
) / L
: Math.hypot(p[0] - a[0], p[1] - a[1]);
if (d > far) {
far = d;
at = i;
}
}
if (far <= eps) return [a, b];
return [
...corners(pts.slice(0, at + 1), eps).slice(0, -1),
...corners(pts.slice(at), eps),
];
}
const cross = (o: P, a: P, b: P) =>
(a[0] - o[0]) * (b[1] - o[1]) - (a[1] - o[1]) * (b[0] - o[0]);
/** The convex hull (monotone chain), counter-clockwise in screen maths. */
function hull(pts: P[]): P[] {
const p = [...pts].sort((a, b) => a[0] - b[0] || a[1] - b[1]),
lo: P[] = [],
hi: P[] = [];
for (const q of p) {
while (lo.length > 1 && cross(lo[lo.length - 2], lo[lo.length - 1], q) <= 0)
lo.pop();
lo.push(q);
}
for (const q of p.reverse()) {
while (hi.length > 1 && cross(hi[hi.length - 2], hi[hi.length - 1], q) <= 0)
hi.pop();
hi.push(q);
}
return [...lo.slice(0, -1), ...hi.slice(0, -1)];
}
const areaOf = (v: P[]) =>
v.reduce((s, p, i) => s + cross([0, 0], p, v[(i + 1) % v.length]), 0) / 2;
/** The smallest box around the hull, at any tilt: its angle, centre and half sizes. */
function minBox(h: P[]) {
let best = { area: Infinity, th: 0, cx: 0, cy: 0, hx: 0, hy: 0 };
for (let i = 0; i < h.length; i++) {
const a = h[i],
b = h[(i + 1) % h.length],
th = Math.atan2(b[1] - a[1], b[0] - a[0]),
c = Math.cos(th),
s = Math.sin(th);
const u = h.map(([x, y]) => x * c + y * s),
w = h.map(([x, y]) => -x * s + y * c);
const [u0, u1, w0, w1] = [
Math.min(...u),
Math.max(...u),
Math.min(...w),
Math.max(...w),
];
const area = (u1 - u0) * (w1 - w0);
if (area < best.area) {
const mu = (u0 + u1) / 2,
mw = (w0 + w1) / 2;
best = {
area,
th,
cx: mu * c - mw * s,
cy: mu * s + mw * c,
hx: (u1 - u0) / 2,
hy: (w1 - w0) / 2,
};
}
}
// A box within 10° of level is drawn level.
const q = Math.PI / 2,
off = ((best.th % q) + q) % q,
lean = off > q / 2 ? off - q : off;
if (Math.abs(lean) < 0.17) {
const xs = h.map((p) => p[0]),
ys = h.map((p) => p[1]);
const [x0, x1, y0, y1] = [
Math.min(...xs),
Math.max(...xs),
Math.min(...ys),
Math.max(...ys),
];
best = {
...best,
th: 0,
cx: (x0 + x1) / 2,
cy: (y0 + y1) / 2,
hx: (x1 - x0) / 2,
hy: (y1 - y0) / 2,
};
}
return best;
}
/** The biggest triangle on the hull's points. */
function bigTriangle(h: P[]): P[] {
let best: P[] = h.slice(0, 3),
area = 0;
for (let i = 0; i < h.length; i++)
for (let j = i + 1; j < h.length; j++)
for (let k = j + 1; k < h.length; k++) {
const a = Math.abs(cross(h[i], h[j], h[k]));
if (a > area) {
area = a;
best = [h[i], h[j], h[k]];
}
}
return best;
}
/** The biggest quadrilateral on the hull's points (hull order keeps it simple). */
function bigQuad(h: P[]): P[] {
const v =
h.length > 36 ? h.filter((_, i) => i % Math.ceil(h.length / 36) === 0) : h;
let best: P[] = v.slice(0, 4),
area = 0;
for (let i = 0; i < v.length; i++)
for (let j = i + 1; j < v.length; j++)
for (let k = j + 1; k < v.length; k++)
for (let l = k + 1; l < v.length; l++) {
const a = Math.abs(areaOf([v[i], v[j], v[k], v[l]]));
if (a > area) {
area = a;
best = [v[i], v[j], v[k], v[l]];
}
}
return best;
}
/** A closed polygon as N points, going the way the hand went and starting nearest its start. */
function ring(v: P[], stroke: P[]) {
const poly =
Math.sign(areaOf(v)) === Math.sign(areaOf(stroke)) ? v : [...v].reverse();
const r = resample([...poly, poly[0]], N).slice(0, N - 1),
from = stroke[0];
let at = 0;
r.forEach((p, i) => {
if (
Math.hypot(p[0] - from[0], p[1] - from[1]) <
Math.hypot(r[at][0] - from[0], r[at][1] - from[1])
)
at = i;
});
const out = [...r.slice(at), ...r.slice(0, at)];
return [...out, out[0]];
}
/* A stand-in for the core's shape_recognize. A closed stroke is judged on its convex hull, by
* measures that do not depend on where it started or how its corners were drawn. */
const FIT = {
closed: 0.35,
straight: 0.08,
triangle: 0.62,
boxFill: 0.835,
quad: 0.77,
oval: [0.68, 0.835],
};
function fit(pts: P[]): P[] | null {
const xs = pts.map((p) => p[0]),
ys = pts.map((p) => p[1]);
const size = Math.max(
Math.max(...xs) - Math.min(...xs),
Math.max(...ys) - Math.min(...ys),
1,
);
const start = pts[0],
end = pts[pts.length - 1];
if (Math.hypot(start[0] - end[0], start[1] - end[1]) > FIT.closed * size) {
return corners(pts, FIT.straight * size).length === 2
? resample([start, end])
: null;
}
const h = hull(pts),
A = Math.abs(areaOf(h)),
box = minBox(h);
if (!(A > 0) || !(box.hx > 0.08 * size && box.hy > 0.08 * size)) return null;
const c = Math.cos(box.th),
s = Math.sin(box.th),
at = (x: number, y: number): P => [
box.cx + x * c - y * s,
box.cy + x * s + y * c,
];
const tri = bigTriangle(h);
if (Math.abs(areaOf(tri)) / A >= FIT.triangle) return ring(tri, pts);
const boxFill = A / (4 * box.hx * box.hy);
if (boxFill >= FIT.boxFill || Math.abs(areaOf(bigQuad(h))) / A >= FIT.quad) {
return ring(
[
at(-box.hx, -box.hy),
at(box.hx, -box.hy),
at(box.hx, box.hy),
at(-box.hx, box.hy),
],
pts,
);
}
if (boxFill < FIT.oval[0]) return null;
return ring(
Array.from({ length: 72 }, (_, k) => {
const t = (k / 72) * Math.PI * 2;
return at(box.hx * Math.cos(t), box.hy * Math.sin(t));
}),
pts,
);
}
const pathOf = (pts: P[]) =>
pts
.map((p, i) => `${i ? "L" : "M"}${p[0].toFixed(1)} ${p[1].toFixed(1)}`)
.join("");
/* HOLD TO PERFECT, then tune:
* 0ms the pen stops moving on a stroke that fits a shape
* 140ms the fitted shape starts tracing itself (the hold timer)
* 590ms it closes: the stroke morphs into the shape (180 ms, eased out)
* 770ms still holding: the shape is in the hand. Moving turns and resizes it around
* its centre; the turn catches at every 45° within 5°. Letting go places it.
* Moving before the outline closes keeps the hand-drawn stroke. */
const TIMING = { still: 140, morph: 180 };
const TUNE = { catchEvery: 45, catchWithin: 5, minScale: 0.2, maxScale: 5 };
type Phase = "idle" | "holding" | "done" | "tuning";
function Play() {
// The stroke lives in a ref: pointer events can come faster than renders.
const stroke = React.useRef<P[]>([]);
const [pts, setPts] = React.useState<P[]>([]);
const fitted = React.useRef<P[] | null>(null);
const [shape, setShape] = React.useState<P[] | null>(null);
const [phase, setPhaseState] = React.useState<Phase>("idle");
const phaseRef = React.useRef<Phase>("idle");
const setPhase = (p: Phase) => {
phaseRef.current = p;
setPhaseState(p);
};
const hand = React.useRef<{ centre: P; base: P[]; from: P } | null>(null);
const [tune, setTune] = React.useState<
| {
centre: { x: number; y: number };
pointer: { x: number; y: number };
angle: number;
scale: number;
}
| undefined
>();
const down = React.useRef(false);
const still = React.useRef<number | undefined>(undefined);
const box = React.useRef<HTMLDivElement>(null);
const at = (e: React.PointerEvent): P => {
const r = box.current!.getBoundingClientRect();
return [e.clientX - r.left, e.clientY - r.top];
};
const arm = (all: P[]) => {
window.clearTimeout(still.current);
setPhase("idle");
if (all.length < 8) return;
still.current = window.setTimeout(() => {
const f = fit(all);
if (!f) return;
fitted.current = f;
setShape(f);
setPhase("holding");
}, TIMING.still);
};
const morph = () => {
const from = resample(stroke.current),
to = fitted.current!;
setPhase("done");
const t0 = performance.now();
const step = (now: number) => {
const t = Math.min(1, (now - t0) / TIMING.morph),
e = 1 - Math.pow(1 - t, 3);
stroke.current = from.map((p, i) => [
p[0] + (to[i][0] - p[0]) * e,
p[1] + (to[i][1] - p[1]) * e,
]);
setPts(stroke.current);
if (t < 1) {
requestAnimationFrame(step);
return;
}
if (!down.current) {
setPhase("idle");
return;
}
// Still holding: the shape is in the hand.
const c = to.reduce<P>(
(m, p) => [m[0] + p[0] / to.length, m[1] + p[1] / to.length],
[0, 0],
);
hand.current = { centre: c, base: to, from: last.current };
setTune({
centre: { x: c[0], y: c[1] },
pointer: { x: last.current[0], y: last.current[1] },
angle: 0,
scale: 1,
});
setPhase("tuning");
};
requestAnimationFrame(step);
};
const last = React.useRef<P>([0, 0]);
const turn = (p: P) => {
const h = hand.current!;
const v0 = [h.from[0] - h.centre[0], h.from[1] - h.centre[1]],
v = [p[0] - h.centre[0], p[1] - h.centre[1]];
const L0 = Math.hypot(v0[0], v0[1]) || 1;
const k = Math.max(
TUNE.minScale,
Math.min(TUNE.maxScale, Math.hypot(v[0], v[1]) / L0),
);
let deg =
((Math.atan2(v[1], v[0]) - Math.atan2(v0[1], v0[0])) * 180) / Math.PI;
deg = ((deg + 540) % 360) - 180;
const near = Math.round(deg / TUNE.catchEvery) * TUNE.catchEvery;
if (Math.abs(deg - near) < TUNE.catchWithin) deg = near;
const r = (deg * Math.PI) / 180,
c = Math.cos(r),
s = Math.sin(r);
stroke.current = h.base.map(([x, y]) => {
const dx = (x - h.centre[0]) * k,
dy = (y - h.centre[1]) * k;
return [h.centre[0] + dx * c - dy * s, h.centre[1] + dx * s + dy * c];
});
setPts(stroke.current);
setTune({
centre: { x: h.centre[0], y: h.centre[1] },
pointer: { x: p[0], y: p[1] },
angle: deg,
scale: k,
});
};
return (
<div
ref={box}
className="snap-canvas"
style={{ height: 360, touchAction: "none", cursor: "crosshair" }}
onPointerDown={(e) => {
try {
(e.target as HTMLElement).setPointerCapture(e.pointerId);
} catch {
/* a synthetic pointer */
}
down.current = true;
setShape(null);
setPhase("idle");
stroke.current = [at(e)];
last.current = at(e);
setPts(stroke.current);
}}
onPointerMove={(e) => {
if (!down.current) return;
const p = at(e);
last.current = p;
if (phaseRef.current === "tuning") {
turn(p);
return;
}
if (phaseRef.current === "done") return;
stroke.current = [...stroke.current, p];
setPts(stroke.current);
arm(stroke.current);
}}
onPointerUp={() => {
down.current = false;
window.clearTimeout(still.current);
if (phaseRef.current !== "done") setPhase("idle");
}}
>
<svg
width={1}
height={1}
style={{ position: "absolute", left: 0, top: 0, overflow: "visible" }}
>
<path
d={pathOf(pts)}
fill="none"
stroke={inkColor("ink")}
strokeWidth={2.5}
strokeLinecap="round"
strokeLinejoin="round"
/>
</svg>
{shape && (
<PerfectPreview
d={pathOf(shape)}
phase={phase}
tune={tune}
onHeld={() => down.current && morph()}
/>
)}
{!pts.length && (
<span className="eng ink-hint">
draw a rough circle, triangle, box or line, then hold still
</span>
)}
</div>
);
}
export default function PerfectPreviewDemo() {
return (
<div className="w-full p-6">
<Play />
</div>
);
}
